Name: Dual-Insulation Workstation with Heat Lamp & Heating Plate
Brand: BAVA
SKU: HL-W101
Availability: InStock

Dual-Insulation Workstation with Heat Lamp & Heating Plate

The BAVA dual-insulation workstation (Models BJ661 / BJ661T / BJ662 / BJ662T) combines overhead infrared heat lamp(s) with a thermostatically controlled heated base plate. Features copper-finished dome lamps, black glass-ceramic warming surface, digital LED temperature control, and optional tempered glass sneeze guard on "T" variants. Stainless steel frame construction.

Product Features

Versatile dual-zone warming station for professional buffet and catering service.

Dual-Zone Heating

Overhead infrared lamp + heated base plate. Two independent warming zones for maximum coverage.

Digital Thermostat

Front-mounted digital LED display with touch controls. Precise base temperature up to 90C.

304 Stainless Steel

Full stainless steel frame and post construction. Commercial-grade durability and hygiene.

Heated Base Plate

Black glass-ceramic warming surface. Smooth, easy-to-clean heated holding area for food pans.

Copper Dome Lamps

Copper/metallic finished dome heat lamps. Elegant aesthetic matching premium buffet presentations.

Height Adjustable

Telescoping post with adjustment collar. Raise or lower lamp heads for optimal heat distance.

T-Model: Sneeze Guard

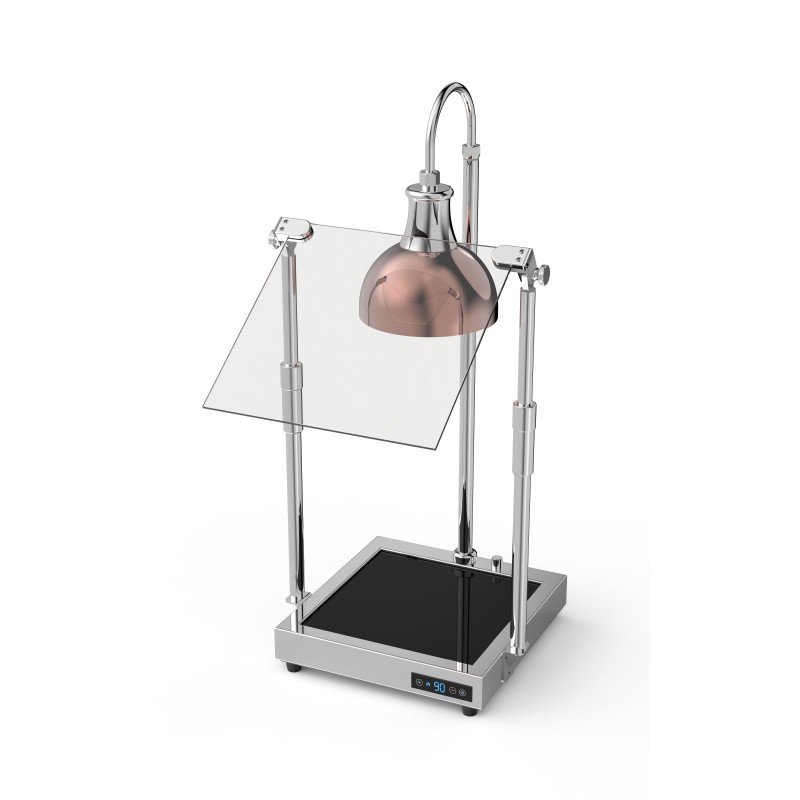

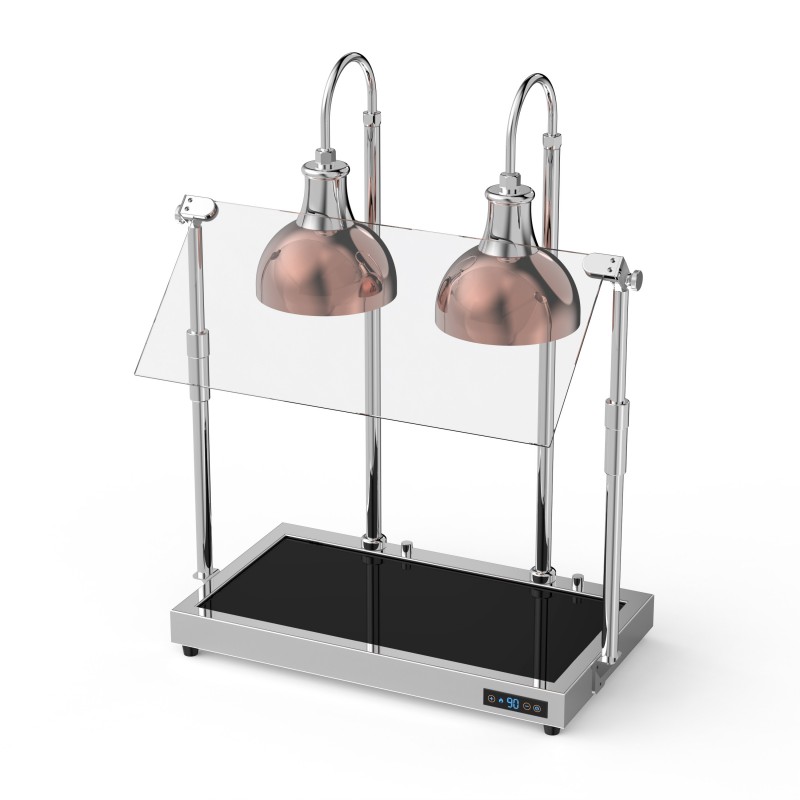

BJ661T/BJ662T include adjustable clear tempered glass sneeze guard for food protection.

Single or Dual Lamps

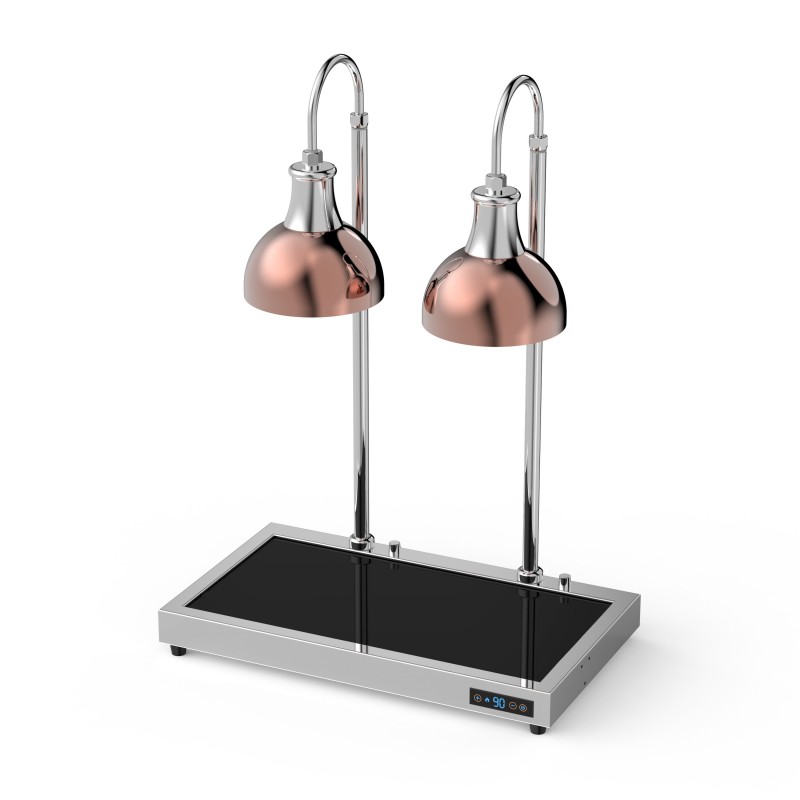

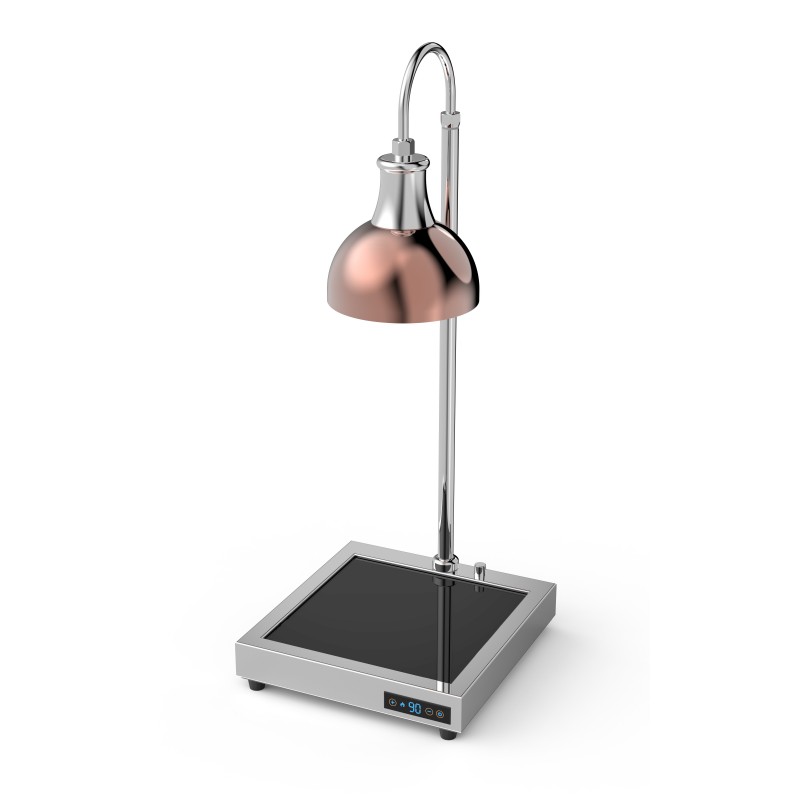

BJ661/BJ661T: single lamp. BJ662/BJ662T: two lamps side by side for wider coverage.

Technical Specifications

Specification	Details
Product Name	Dual-Insulation Workstation (Heat Lamp + Heating Plate)
Model No.	HL-W101
Available Variants	HL-W101 / HL-W101-T / HL-W102 / HL-W102-T
Factory Ref	BJ661 / BJ661T / BJ662 / BJ662T
Power Supply	Bulb AC220V 238W + Heating plate AC220V 400W
Heating Method	Infrared Heat Lamp + Heating Plate
Lamp Configuration	1 or 2 Copper Dome Infrared Lamps
Base Temp Range	Up to 90C (Digital Thermostat)
Base Surface	Black Glass-Ceramic Heating Plate
Frame Material	304 Polished Stainless Steel
T-Model Feature	Adjustable Tempered Glass Sneeze Guard
Certifications	CE Certified
Minimum Order (MOQ)	50 pcs
Lead Time	25-30 days after deposit
Warranty	1 year against manufacturing defects
OEM / ODM	Available - logo, finish and packaging customization

Applications

Recommended service environments for this heat lamp

Carving and hot-holding stations in hotel restaurants
Buffet hot lines that need heat from above and below at the same time
Cooked-to-order and finishing stations in catering kitchens
Hotel breakfast egg, bacon and pancake stations
Banquet pass areas holding plated food at serving temperature

Frequently Asked Questions

Common questions from catering and hospitality buyers

What is the difference between the heat lamp and the heated base plate?

The overhead infrared lamp keeps the exposed surface of the food hot, which is what matters for carved meat, roasts and gratin tops. The thermostatically controlled base plate holds the whole pan from underneath. Running both together is what stops a large pan from going cold in the middle.

How precisely can I control the base temperature?

The front-mounted digital LED controller with touch buttons lets you set and read the glass-ceramic plate temperature up to 90C. That covers hot-holding for cooked meats, sauces and side dishes without drying them out.

What power supply does the workstation need?

The infrared bulb draws AC220V 238W and the heating plate draws a further AC220V 400W, so plan for roughly 640W per unit on a single configuration. We can supply 110V builds for North American and Japanese markets.

What does the "T" version add?

The T variants (HL-W101-T / HL-W102-T, factory ref BJ661T / BJ662T) add an adjustable clear tempered glass sneeze guard between the lamps and the food. It keeps the heat path open while protecting open food, which is normally required for self-service lines.

How do I clean the glass-ceramic warming surface?

Switch off and let the plate cool completely, then wipe with a soft damp cloth and mild detergent. Black glass-ceramic shows streaks easily, so avoid abrasive pads and finish with a dry microfibre cloth.

What are the MOQ, lead time and customisation terms?

MOQ is 50 pcs with 25-30 days production after deposit. OEM and ODM options include lamp count, copper dome finishes, sneeze guard configuration, logo and packaging.
