Commercial Food Heat Lamps: Manufacturer Specs and Station Planning

Short answer: a commercial food heat lamp is a 250 W or 275 W infrared lamp held 30–45 cm (12–18 in) above a countertop and 60–90 cm (24–36 in) above the food on a ceiling-mounted bar; two heads cover roughly 1.2 × 0.8 m. BAVA manufactures 8 models, from single-head units to the HL-L201 double-group bar with built-in lighting.

Food Heat Lamp Manufacturer: What to Verify Before You Buy

Heat lamps look simple, which is why they are often bought from traders who cannot control the parts that fail: the lamp holder, the ceramic socket, the wiring and the finish on a metal body that sits over steam all day. Buying from the factory changes what you can ask for:

Wattage is the next decision, and the rule that survives testing is roughly 250 W per 0.25 m² of holding surface at 40 cm, with a 275 W lamp used when the mounting height is fixed and higher. The selection table and circuit maths are in how many watts for a food heat lamp.

Carving Station Heat Lamps

A carving station has a different job from a buffet line: the joint must stay above 60 °C (140 °F) while a carver slices it over twenty or thirty minutes, and the bar has to span the meat plus a 300 mm margin on each side so guests see the whole joint lit. That is why carving stations use a bar, a rack or a double-group unit rather than a single lamp.

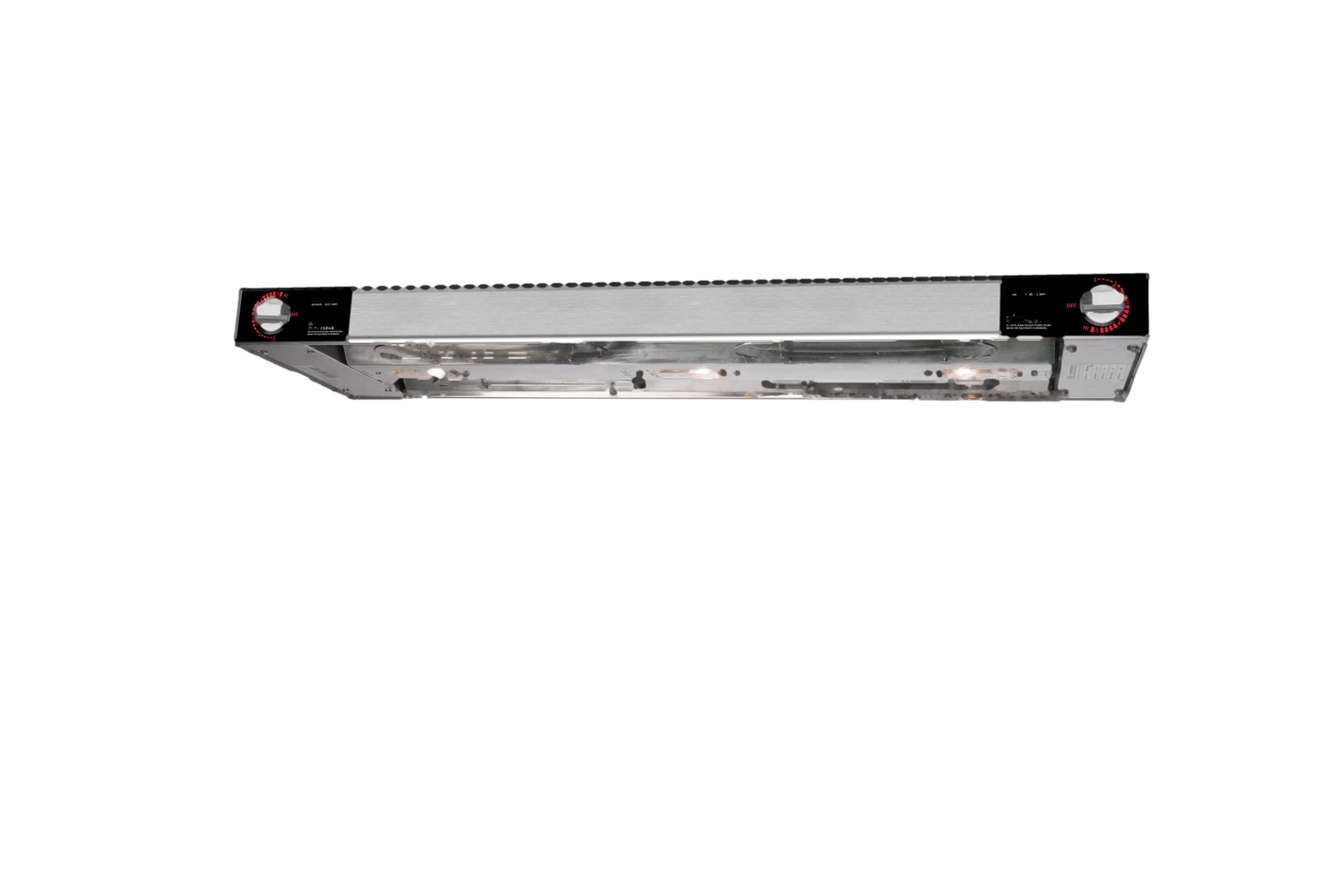

Two details separate a working carving station from a dry one: keep the lamp far enough away that the surface is hot but the crust is not, and turn the joint every 10–15 minutes so no single face sits under the beam. Long-bar units with two independently switched zones, such as the HL-L201, let you heat the meat and the garnish side separately instead of blasting both. Holding times and the 4-hour rule are covered in how long food can stay under a heat lamp, and the choice between a lamp and a chafer for the same station is compared in heat lamp vs chafing dish.

For a whole line — hot, carving, cold, breakfast and dessert — see the buffet station equipment guide.

Frequently Asked Questions

Are you a heat lamp manufacturer or a trading company?

We manufacture: the housing, rack, wiring loom and assembly are made in our own plant, and the same lines produce our chafing dishes, dispensers and display stands. That is why one purchase order can cover a complete buffet station instead of four suppliers.

What wattage do I need for a carving station?

Use one 250 W head per 600 mm of carving surface, or 2 × 275 W for a 900–1,200 mm bar. If the lamps are fixed to a ceiling at 60–90 cm, choose 275 W; if they sit 30–45 cm above the food, 250 W is enough and less likely to dry the crust.

Can the heat lamps be supplied for 110 V / 60 Hz?

Yes. Every model is built in both 110–120 V and 220–240 V versions, and the plug, cord length and labelling are set to the destination market. Tell us the country at quotation stage and the correct version is quoted automatically.

Do heat lamps dry food out?

Infrared dries the surface only when the lamp is too close or the food is left uncovered for hours. At 30–45 cm with normal rotation, a joint or tray of fries holds for a typical 2–3 hour service without visible crusting; the moisture loss comes from the air above the food, not from the lamp itself.

What is the MOQ and lead time for wholesale heat lamps?

MOQ is 50 pcs per model, mixed models allowed in one order, with a 25–30 day production lead time. Sample units of 1–2 pcs are available first so the mounting height and wattage can be tested on your own counter.
