Name: Stainless Steel Buffet Heat Lamp Rack
Brand: BAVA
SKU: HL-R401
Availability: InStock

Stainless Steel Buffet Heat Lamp Rack (BJ604 Series)

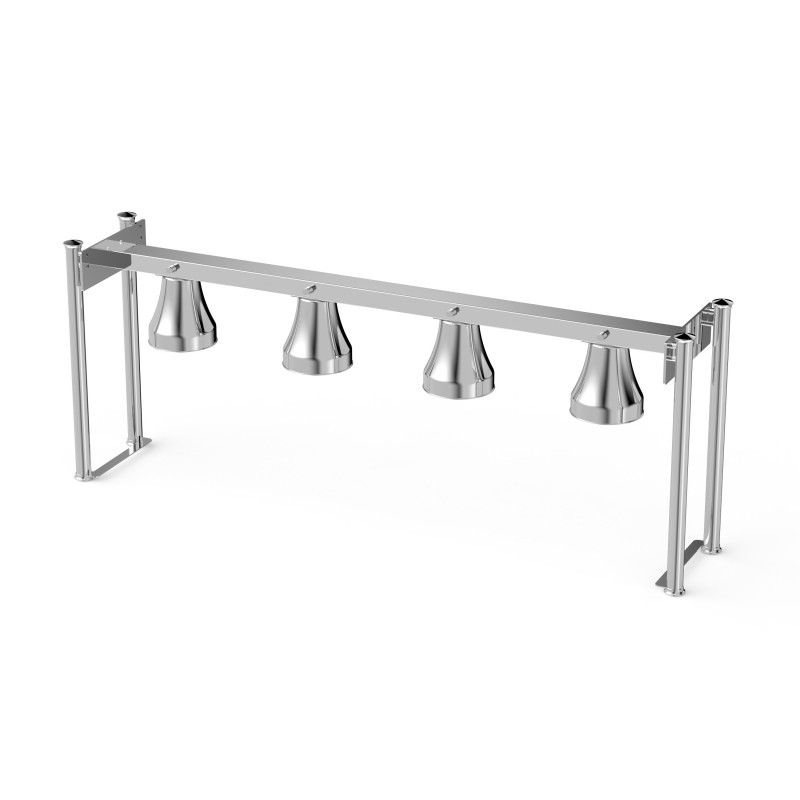

The BAVA stainless steel buffet heat lamp rack series features four lamp heads mounted on a linear overhead gantry frame with vertical support posts. Available in multiple variants: BJ604 (basic), BJ604B (angled handles), BJ604B-G (gooseneck copper), and BJ604C (with sneeze guard). 304 stainless steel construction throughout.

Product Features

Professional 4-lamp overhead warming system for buffet lines and catering stations.

4-Lamp Linear Array

Four lamp heads in a linear configuration. Wide heat coverage across the full serving area.

304 Stainless Steel

Full stainless steel construction. Brushed/polished finish for commercial food service durability.

Adjustable Angles

Individual lamp angle adjustment on most models. Direct heat precisely where needed.

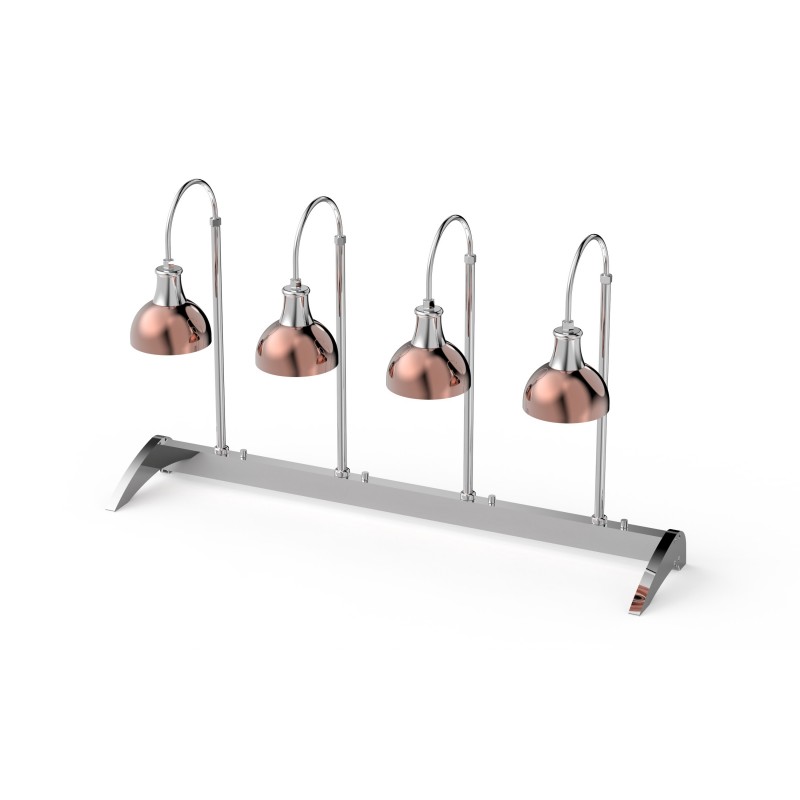

BJ604B-G: Copper Finish

Gooseneck flexible arm mounts with copper/bronze lamp shades. Elegant premium variant.

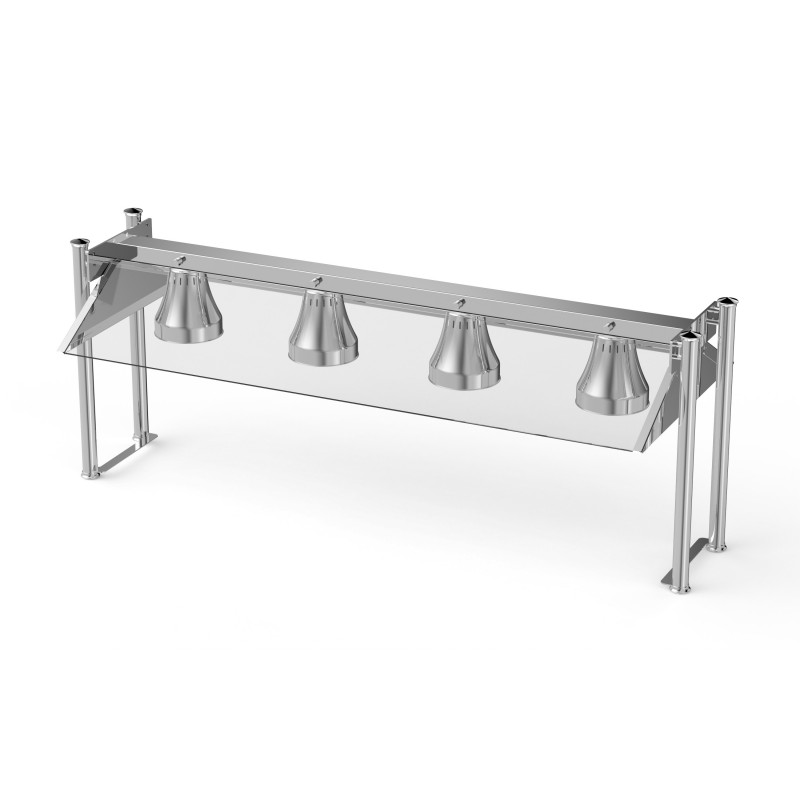

BJ604C: Sneeze Guard

Integrated transparent acrylic/glass sneeze guard panel beneath the lamps. Food protection.

Freestanding Frame

Overhead gantry with base plates. Sits over existing buffet counters or food wells.

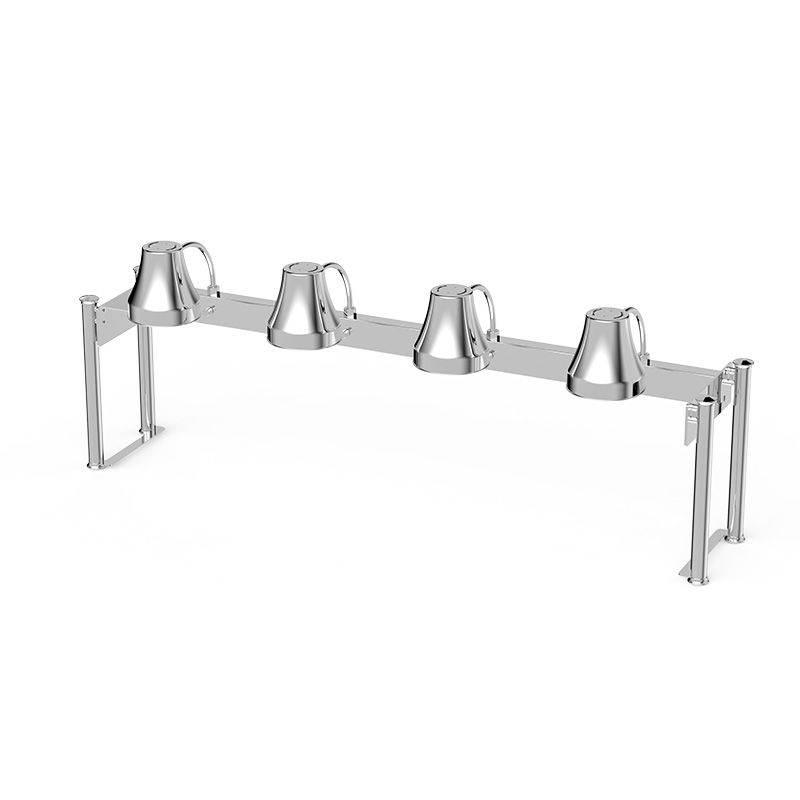

BJ604B: Side Handles

Side-mounted handles on lamp heads for easy angle adjustment and positioning.

Easy Clean

Smooth stainless surfaces. Removable lamp components for straightforward maintenance.

Technical Specifications

Specification	Details
Product Name	Stainless Steel Buffet Heat Lamp Rack (BJ604 Series)
Model No.	HL-R401
Available Variants	HL-R401 / HL-R401-A (side handles) / HL-R401-C (copper gooseneck) / HL-R401-T (sneeze guard)
Factory Ref	BJ604 / BJ604B / BJ604B-G / BJ604C
Power Supply	AC220V 238W per infrared bulb (4 lamp heads)
Heating Method	4 x Infrared Heat Lamps
Number of Lamps	4 Lamp Heads (Linear Array)
Material	304 Stainless Steel (Brushed/Polished)
BJ604 Shade	Conical Stainless Steel Lamp Shades
BJ604B-G Shade	Copper/Bronze Gooseneck Arm Lamps
BJ604C Feature	Integrated Acrylic/Glass Sneeze Guard
Lamp Adjustment	Individual Angle Adjustment (Model Dependent)
Certifications	CE Certified
Minimum Order (MOQ)	50 pcs
Lead Time	25-30 days after deposit
Warranty	1 year against manufacturing defects
OEM / ODM	Available - logo, finish and packaging customization

Applications

Recommended service environments for this heat lamp

Long hotel buffet lines that need continuous overhead heat
Banquet and conference hot-holding stations
Carving counters spanning several full-size food pans
Catering operations built over existing food wells and counters
Live cooking and display stations in club and casino venues

Frequently Asked Questions

Common questions from catering and hospitality buyers

How wide an area do four lamps cover?

The four lamp heads are spaced along a linear gantry so the heat band covers a full run of standard food pans rather than a single spot. Tell us the width of your buffet counter and we will confirm the head spacing and gantry length before production.

Can I run only part of the array to save energy?

Yes. Each lamp head is an independent screw-fitting bulb on its own holder on most variants, so you can leave unused positions switched off or unfitted for low-season service without changing the frame.

What does the sneeze guard variant add?

The HL-R401-T / BJ604C variant adds a transparent acrylic or glass sneeze guard panel mounted beneath the lamps. It shields open food from coughs and handling while keeping the infrared heat path clear, which is what health inspectors usually look for.

Will this fit over the benches I already have?

The frame is free-standing with base plates, so it sits over an existing buffet counter or food well without any ceiling or wall work. Send us your counter height and width and we will confirm the gantry dimensions.

What power supply and circuit do I need?

It runs on AC220V with 238W per infrared bulb, so four lamps draw approximately 950W in total. A standard dedicated 10A commercial circuit is sufficient; we can supply 110V versions and other plug types for different markets.

What are the MOQ, lead time and OEM terms?

Standard MOQ is 50 pcs, produced in 25-30 days after deposit. OEM and ODM cover logo application, copper or stainless shade options, custom gantry lengths and branded packaging.
